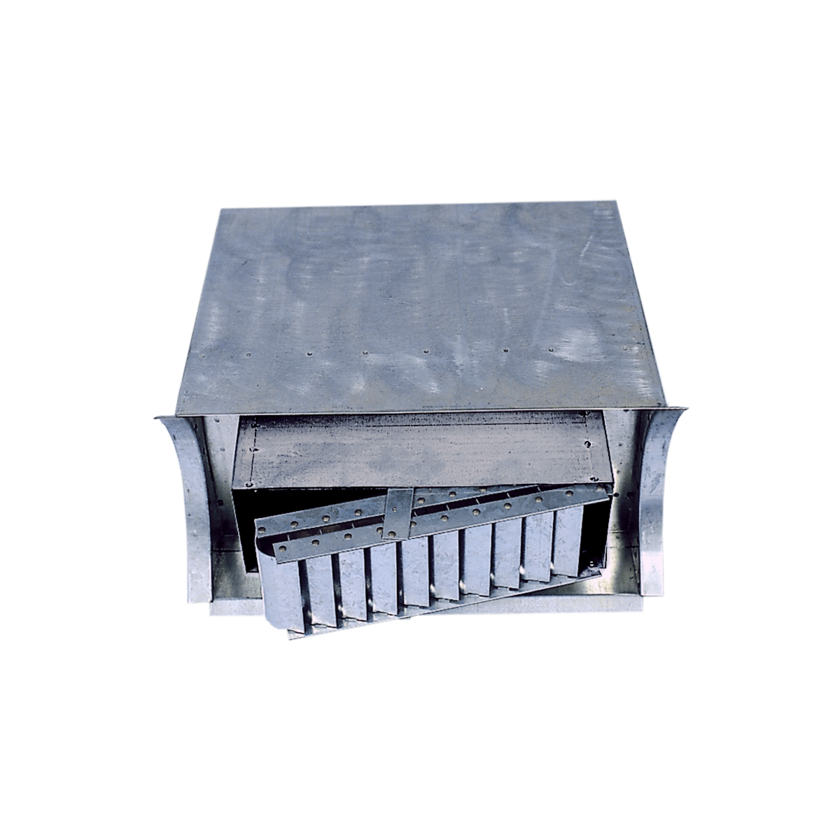

SBL
Main features
• Accessories for supply air grille RBL
• Intended for production environments, e.g. warehouses, industrial premises
• Suitable for large air volumes
• Intended for longitudinal duct installation
Description
• Connection spigot with integrated louvre damper for installation in circular ducts.
• The insert allows ±30° adjustment of the air direction in the horizontal joint.
• The main product is suitable for most types of premises where large volumes of air need to be supplied, e.g. warehouses, industrial or other production environments.
• Grilles and accessories are designed for longitudinal duct installation.
• SBL can also be ordered for rectangular ducts as a special order.
Produktstorlekar – SBL*) (mm)
For grille dimension: WxH | Fits duct diameters: Ø
300 x 150 | Ø250/315/400/500/630
450 x 150 | Ø250/315/400/500/630
600 x 150 | Ø250/315/400/500/630
350 x 250 | Ø250/315/400/500/630
*) Special order item, longer delivery time.
• SBL: Hot-dip galvanised steel sheet.
• The main product is installed directly in a rectangular duct.
• For installation in a circular duct, the SBL connection socket accessory is required.
• The product is riveted or screwed into the duct.
• When installing using the SBL spigot accessory, the grille is first secured in the accessory.
• The recommended installation height is up to 10 m above the floor.
• When installing in a rectangular duct and the air velocity exceeds 4.5 m/s, the rectangular version of the SBL accessory should be used.
