OLS [b]

Delivery form

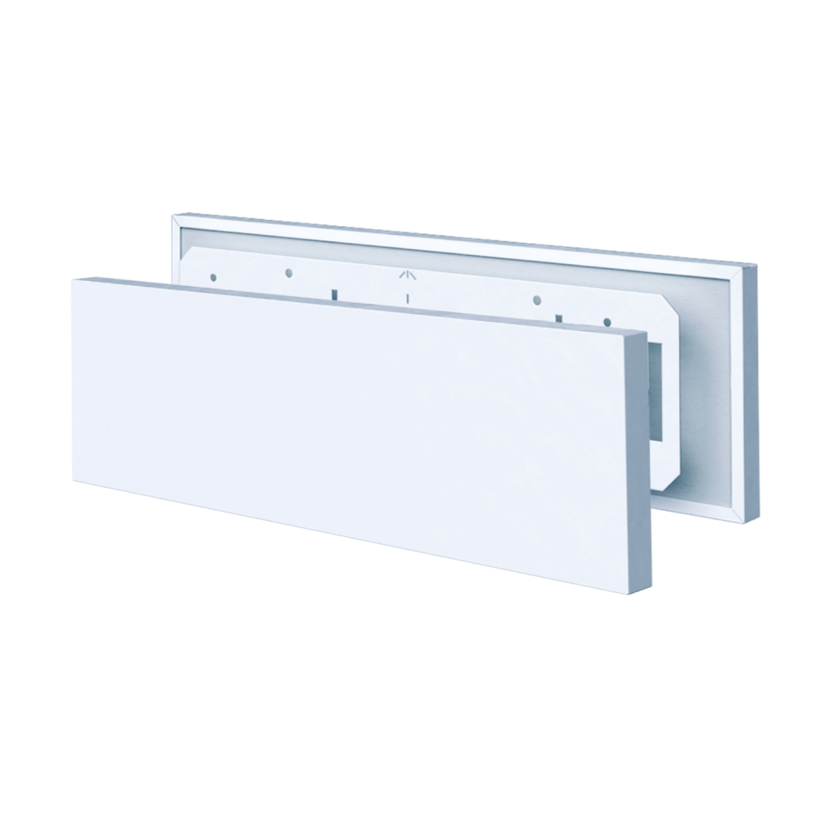

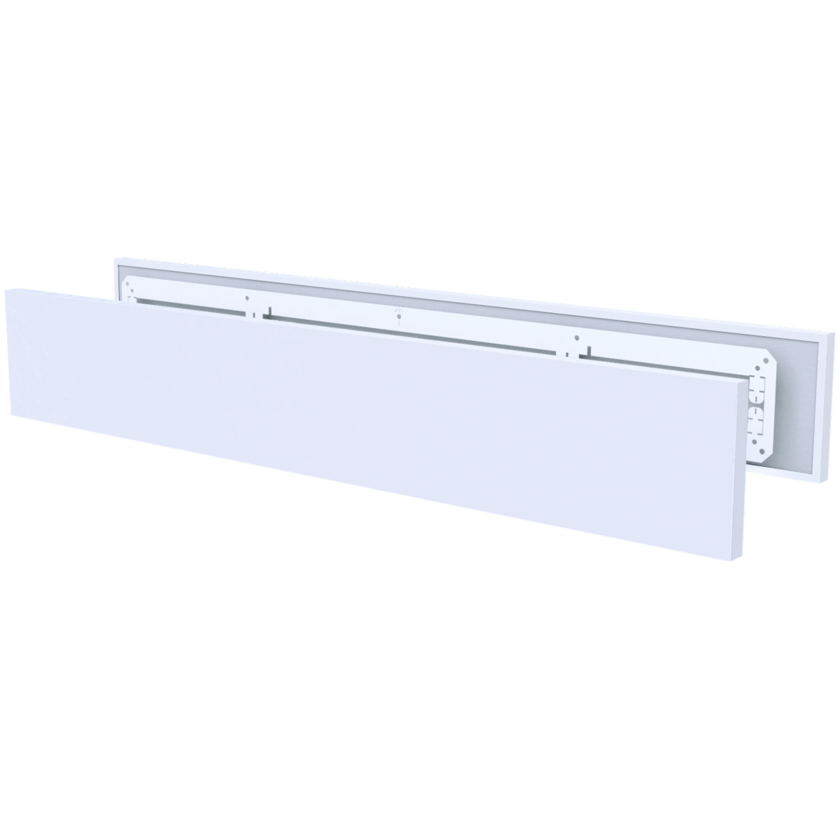

• The product is delivered in pairs, including mounting frame RAM-OLS/ÖLS [b₂].

Product sizes (mm)

Designation | Front panel (B x H) | hole dimension (B x H)

OLS-300 | 390 x 130 | 320 x 50 mm
OLS-550 | 600 x 130 | 555 x 50 mm
OLS-800 | 890 x 130 | 820 x 50 mm

Colours

• Powder coated, white RAL 9003 (standard)
• Powder coated, black RAL 9005 (stock item)
• Powder coated, gray RAL 9006 (delivery time applies)
• The product can be supplied in alternative colours on special order.

Accessories

• OFI-R (ÖFI-R): Fibre blocker for transfer air units that prevents the spread of insulation fibres in air flows.

– Elastic wall penetration sleeve for transfer air units mounted in insulated stud walls that prevents spreading of fibres and particles into the air flow.

– Does not affect free area or sound performance, unlike sheet-metal wall penetration sleeves.

– Made from environmentally friendly, flexibe and flame-retardant material.

– Complies with current recommendations for OVK inspections.

– Can be combined with the following rectangular transfer units: OLS/ÖLS, SOD[a]/SÖD[a], E5^*2

– Available in circular version, OFI-C (ÖFI-C)

^*2) E5 or other rectangular product supplied or ordered in pairs for transfer air purposes, must be within the dimensions W ≤ 800 och H = 50 mm.

Sizes OFI-R (ÖFI-R) (mm)
– Supplied in 4 separate parts that is fitted together in rectangular hole cuttings.
– Available in three different widths with a fixed height of 50 mm.

Wall depth | for cut-out (nom, BxH) | Designation

70 mm | W≤300 x H=50 | OFI-R70-300
95 mm | W≤300 x H=50 | OFI-R95-300

70 mm | W≤550 x H=50 | OFI-R70-550
95 mm | W≤550 x H=50 | OFI-R95-550

70 mm | W≤800 x H=50 | OFI-R70-800
95 mm | W≤800 x H=50 | OFI-R95-800

• OLR/ÖLS [b]: The product is made of sheet steel, powder-coated in white RAL standard color, internally insulated with washable and surface-coated sound absorber. The product's insulation consists of 100% recycled, non-allergenic, hydrophobic PET plastic material. It is free from formaldehyde and, when burned, only carbon dioxide and water are produced.

• RAM-OLS/ÖLS [b₂]:: Mounting frame, made of hot-dip galvanized sheet steel.

• OFI-C: Made from environmentally friendly, flame-retardant polyurethane foam. The material is CertiPUR and Oeko-Tex certified.

• The product is installed in pairs with the supplied mounting frames on either side of a wall over a rectangular holecutting.

• The inner dimensions of the included mounting frames can be used as a cutting template.

• Each frame is marked with a centred arrow cut-out. The frames must be installed with the arrow pointing upwards for correct wall mounting.

• The frame parts have pre-drilled holes for screw mounting. Each frame is secured with screws (not included).

• For a single plasterboard wall, a screw at least 20 mm long is recommended; for a double plasterboard wall, at least 30 mm.

• Each front panel is then hooked onto the mounting frame brackets for final installation.

• When fibre protection sleeve OFI-C / ÖFI-C is used, the protection sleeve should ideally be inserted into the cut-out before installing the transfer unit and mounting frame.

• The fibre protection cover can, however, be installed either before or after installation of the transfer unit. The sleeve penetration's elastic and self-tensioning properties make it easy to press into the hole in the stud wall.
