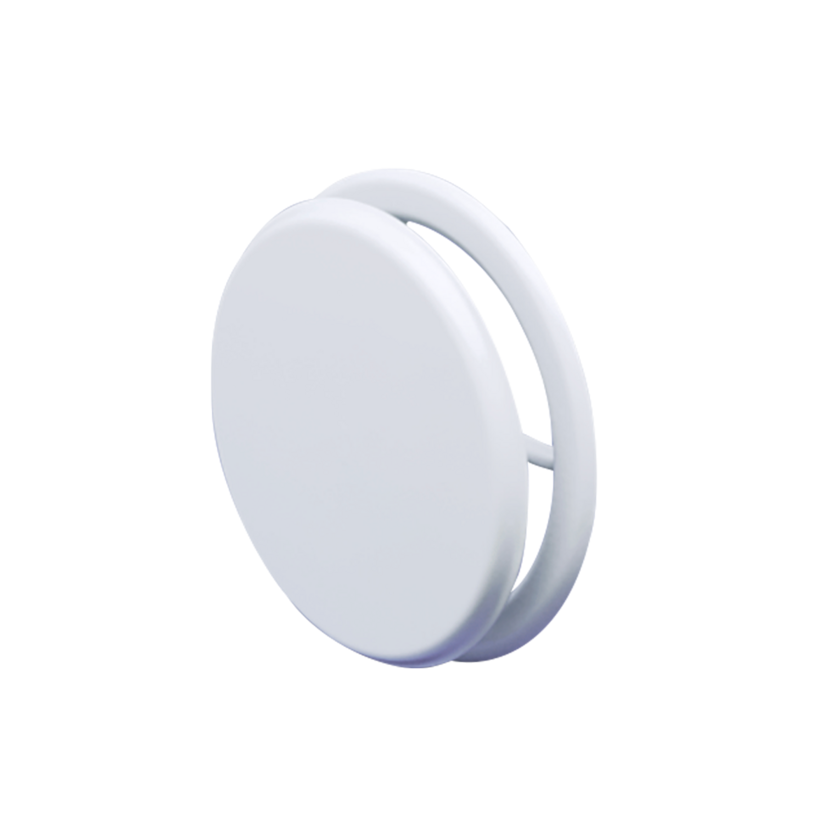

VT
Main features
• Disc valve for natural passive ventilation and outdoor air intake
• Available in four sizes (Ø100-200)
• Recommended working range, 5-100 l/s
• Easy installation
Description
• The VT valve is a device for natural ventilation, extract air, transfer air, or as an outdoor air device for fresh air intake.
Delivery form
• The product is delivered in single units, order x 2 for transfer air installation
Product sizes (mm):
Ø100
Ø125
Ø160
Ø200
• Steel sheet, painted with dirt-repellent white epoxy paint (RAL 9010) with a glossy finish.
• The VT disc valve is installed in either an outdoor air opening, an extract air opening, or on either side of a wall in a transfer air opening.
• The valve frame is installed in the duct using two screws.
• Commissioning is made by screwing the disc to the desired gap opening, after which the position is fixed with a lock nut.
